How To Fix Restart Issue On Galaxy M30s, M31, M31s, A50, A50s? (Latest Method)

Pin it

restart issue

The Galaxy "A" & "M" series Smartphones has enabled Samsung to sell millions of phones in the budget and mid range sector over the years. However recently there are some unfortunate issues has started popping up around the globe. Some Galaxy "A" and Galaxy "M" models has started showing a mysterious problem which causes the phone to freeze up and restart automatically. The affected models are Samsung Galaxy M30s, Galaxy M31, Galaxy M31s, Galaxy A50 and Galaxy A50s.

The issue has started on the above devices about an year ago, to say from June 2020, and unfortunately it still persists. Most of the users have noticed this issue after a recent firmware update which upgraded their phone from Android 10 to Android 11. On the contrary downgrading the firmware doesn't solve the issue though.

However if you are going through a simple "bootloop" please try the below tutorial;

What is causing the automatic restart Issue On Galaxy M30s, M31, M31s, A50, A50s?

Advertisement

After getting feedback from many users it is affirmed that a recent update triggered the restart issue. Even some users has gone to endless bootloop also.

As per the manufacturer the issue is hardware related though and they are asking for a motherboard replacement which costs around $100.

But according to my best assumption the restart issue is triggered when the phone's CPU is heated up when it is running on higher clock speeds. So when the CPU gets hot the protection mechanism on the phone falsely triggers a restart.

Further;

Below are the solutions which are roaming on the internet already;

1. Factory reset

2. Downgrading the firmware to Android 10

3. Disabling the "Auto restart" option

Apart from the above ones there are numerous hacks available on the internet to resolve this issue, but none of them actually worked.

How I know?

I tried all of them myself on my Samsung Galaxy M30s which is also having the same issue for the last couple of months, but unfortunately none of them worked. I even contacted the authorized service center and they advised me to replace the motherboard, which I definitely will not do.

So I decided to find a solution myself and finally I did.

Hurray! finally we have a 100% working solution to resolve the automatic restart issue on Samsung Galaxy M30s, Galaxy M31, Galaxy M31s, GalaxyA50 and Galaxy A50s.

If you are here you may be looking for;

  • How to fix/resolve automatic restart issue Galaxy M30s ? (SM-M307F, SM-M307FN, SM-M3070)
  • How to fix/resolve automatic restart issue Galaxy M31? (SM-M315F)
  • How to fix/resolve automatic restart issue Galaxy M31s? (SM-M317F)
  • How to fix/resolve automatic restart issue Galaxy A50? (SM-A505F, SM-A505FN, SM-A505GN, SM-A505G, SM-A505FM, SM-A505YN, SM-A505W, SM-A505X, SM-A505U, SM-A505GT, SM-A505U1, SM-A505G, SM-A505N, SM-S506DL)
  • How to fix/resolve automatic restart issue Galaxy A50s? (SM-A507F, SM-A507FN, SM-A5070)
  • How to fix/resolve hang, bootloop issue on Galaxy M30s, Galaxy M31, Galaxy M31s, GalaxyA50 and Galaxy A50s?

So lets proceed to the tutorial now.

Before proceeding any further please make sure that you have made a complete backup of your phone to prepare for worst case scenario. Also please be informed that samsungsfour.com will not be liable for any loss of data nor bricking of the device as result of this tutorial.

Prerequisites

1. Your phone should be rooted. We cannot proceed any further until your phone is rooted.

Please follow the below links for rooting your phones (all models are not there currently available, however we will update the links soon)

Steps to fix/resolve automatic restart issue on Samsung Galaxy M30s, Galaxy M31, Galaxy M31s, GalaxyA50 and Galaxy A50s

Hope your Galaxy Smartphone is already rooted with super user privileges.

1. First you need to download and install the app Kernel Toolkit from Google Play Store

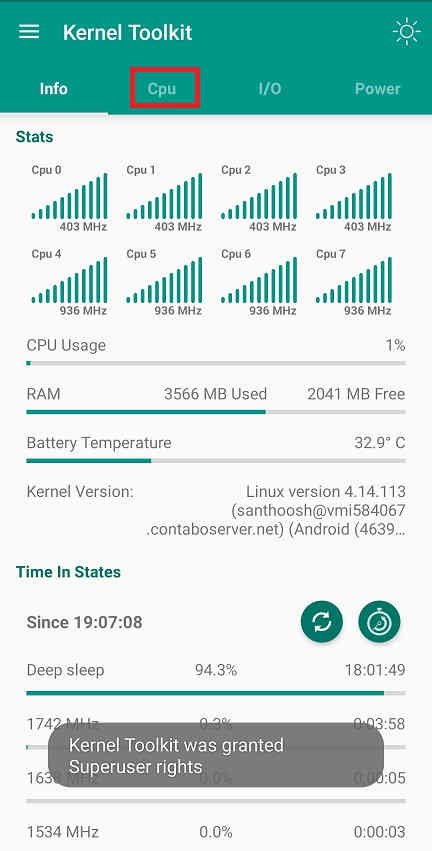

2. Once installed please open the app and give proper root privileges for it when asked. When you open the app you will get a similar screen like the one given below.

restart1 1

3. Now tap on the tab "Cpu" and you will get the below page.

restart2

Here you need to edit the below parameters;

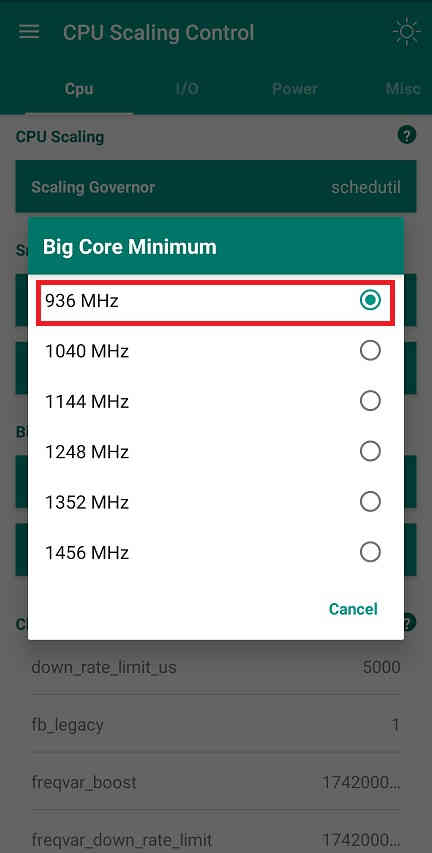

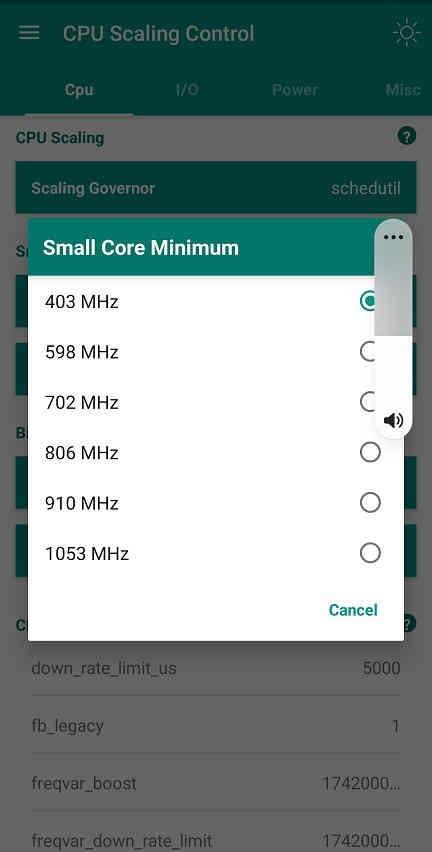

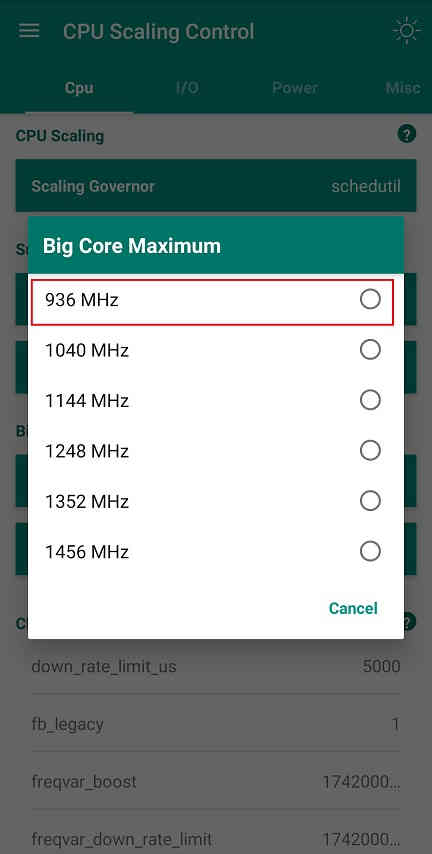

Minimum and Maximum Frequency for small cores and Minimum and Maximum Frequency for big cores. Below screenshots will help you to get a better idea on how to do that. Just tap on the "Minimum Frequency" and "Maximum Frequency" to edit it.

restart2

restart2

restart2

restart2

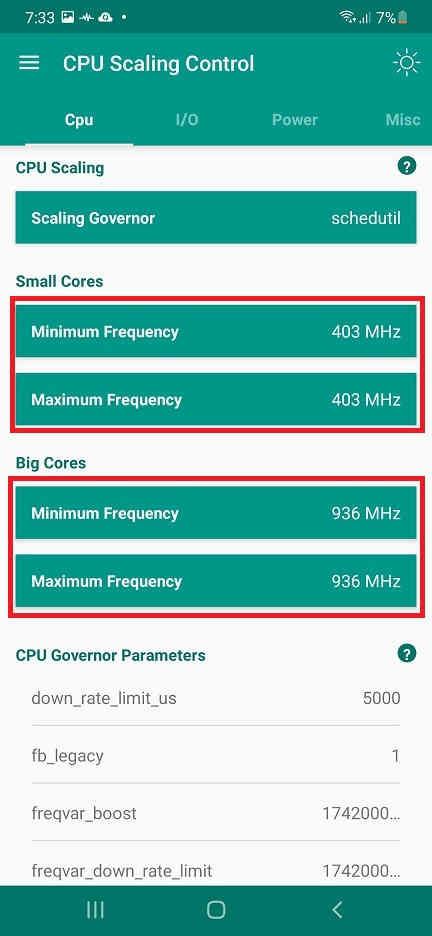

As shown already in the above screenshots please set "Small Core" minimum/maximum to "403MHz" and "Big Core" minimum/maximum to "936MHz".

However you may try different clock speeds and check whether your phone is working normally.

Trust me, even though the processor is drastically under clocked, I am not seeing any performance issues for normal operations. However high intensity applications may suffer. But it's better than throwing the phone away, right?

Further;

What is really done here?

What we have done here is, as already said, we have under clocked your Galaxy M30s, Galaxy M31, Galaxy M31s, Galaxy A50 and Galaxy A50s CPU to a lower clock speed so that it never get heated up to the point that the motherboard triggers an automatic shutdown.

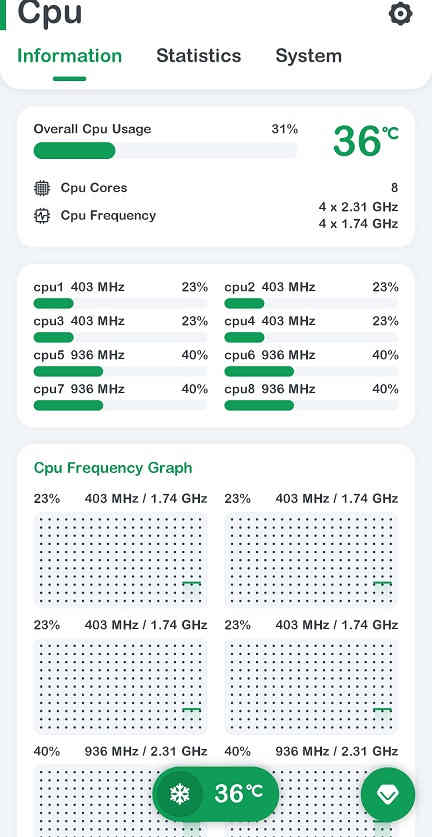

Please check the below screenshot which shows the CPU information from the app "CPU Monitor". It clearly shows that the CPU clock speed is fixed at "403" and "936" MHz respectively.

restart2

Note: If your phone is restarted or the root is lost some how, you need to do the whole process again.

However if you have faced any issues which needs any support while trying to resolve restart issue on Galaxy M30s, M31, M31s, A50 & A50s, please feel free to post it in the comment section below, don't worry I will help you as fast as I can.

If "How To Fix Restart Issue On Galaxy M30s, M31, M31s, A50, A50s? (Latest Method)" tutorial really helped you, please give a like/share on social networking websites by using the below given buttons.
